Battery Connector

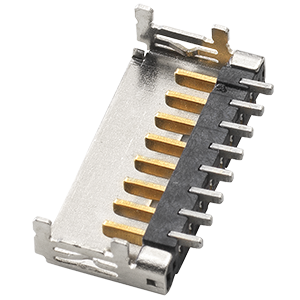

Knife Battery Connector7 Pin, 8 Pin, 9 Pin of 2.00 mm PitchLife Test: 5000 Cycles.
WTB Board Side and Cable Side8 Pin, 12 Pin, 14 Pin of 1.25 mm Pitch.Life Test: 30 Cycles.Life Test: 30 Cycles.
| 型号 | 品名 | 图片 | 类型 | 对应零件 | 下载 |
|---|---|---|---|---|---|
| UD08N-WTB1 | 8P WTB CABLE SIDE |
|
Female | HD08S-WTA1 | |
| 2HW-M0-08-PBA1 | 8P WTB Cable Side |
|
Female | HD08D-WTA0, HD08S-WTA1, HD08S-WTB2, HD08D-WTB0, HD08S-WTB1 | |
| UD08N-WTA1 | 8P WTB CABLE SIDE |
|
Female | HD08D-WTA0 | |
| 2HW-M2-10-PB01 | 10P WTB CABLE SIDE |
|
Female | ||
| 2HW-M0-12-PBA2 | 12P WTB CABLE SIDE 1.25PH main |
|
Female | WPF2-10-T01 | |
| UD12N-WTB1 | 12P WTB CABLE SIDE |
|
Female | HD12S-WTB1 | N/A |

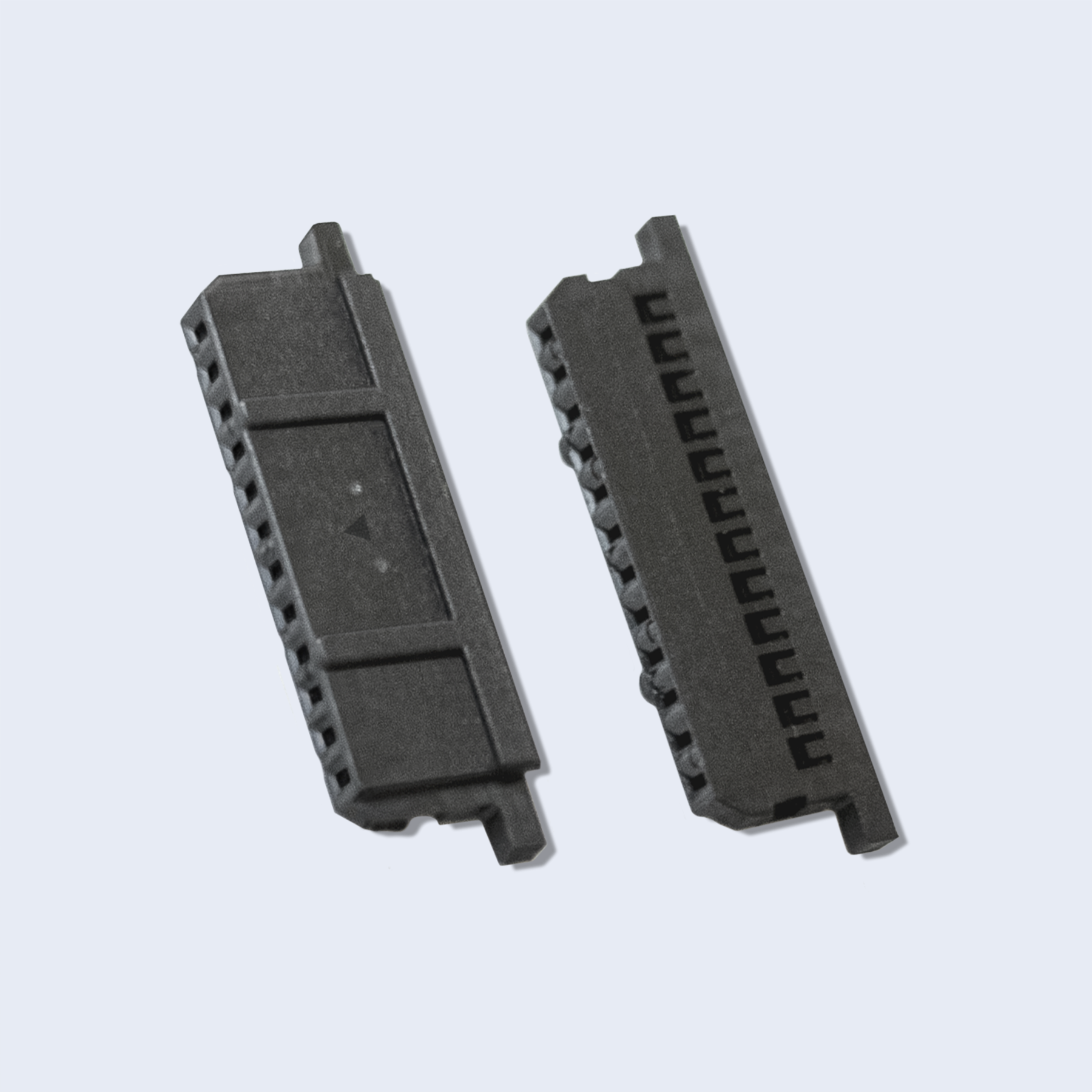

| UD12N-WTA1 | 12P WTB CABLE SIDE |
|
Female | HD12S-WTA5 | |
| 2HW-M0-14-PB03 | 14P WTB CABLE SIDE |
|
Female | WPF2-14-R-01 | |

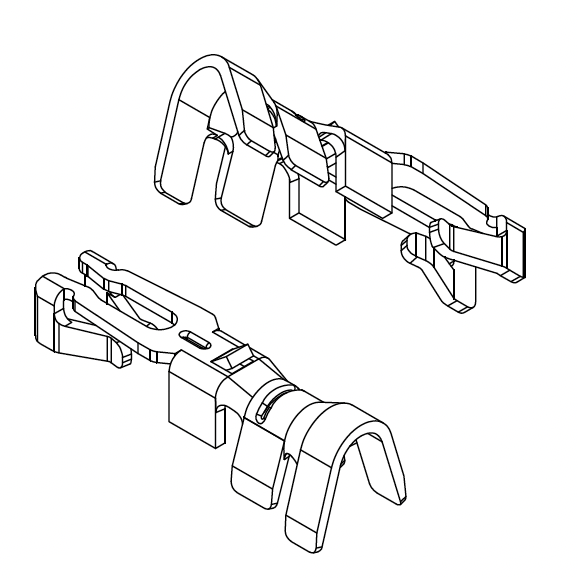

| TWP021A-A01000 | 1.25PH 线端端子 |
|
|||
| TWP021A-A01001 | WTB Wire Side Terminal 1.25PH |
|
|||
| HD08D-WTB0 | WTB 8Pin BOARD SIDE SMD |
|
Male | 2HW-M0-08-PBA1 | |
| HD08S-WTB1 | WTB 8Pin BOARD SIDE |
|
Male | 2HW-M0-08-PB01 | |
| HD08S-WTB2 | WTB 8Pin BOARD SIDE |
-2001.png)
|
Male | 2HW-M0-08-PBA1 | N/A |
| HD08S-WTA1 | WTB 8Pin BOARD SIDE |
-2001.png)
|
Male | 2HW-M0-08-PBA1 | |
| HD08D-WTA0 | WTB 8Pin BOARD SIDE |
|
Male | 2HW-M0-08-PBA1 | |
| WPF2-10-T01 | WTB 10Pin Board Side 1.25mm Pitch |
|
Male | 2H-M2-10-PB01 | |
| HD12S-WTB1 | WTB 12Pin BOARD SIDE |
|
Male | UD12N-WTB1 | |
| HD12S-WTA5 | WTB 12Pin BOARD SIDE |
|
Male | UD12N-WTA1 | |
| WPF2-14-R-01 | WTB 14Pin BOARD SIDE 1.25PH main |
|
Male | 2HW-M0-14-PB03 | |
| PF04-XXA01-R0 | 2.50 Pitch Battery Connector (Assembly, Female) |
|
Female | PM04-XXA01-R0 | |
| PM04-XXA01-R0 | 2.50 Pitch Battery Connector, Male (90° Plug) |
|
Male | PF04-XXA01-R0 | |
| BY02107-NATR00 | 7P Male Battery Connector (H=4.80mm) |
|
Male | ||
| HD07S-KFA2 | 7P MALE BATTERY |
|
Male | UD07S-KFA2 |
